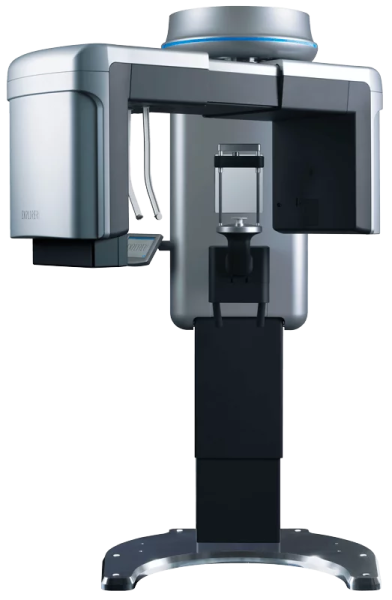

PreXion 3D Explorer PRO 3-in-1 CBCT Scanner
Make IT Visible - Advanced diagnostic technologies moving you forward
The world's first 3D CBCT with integrated ceph x-ray is a game changer in the dental imaging! Designed to help you achieve dental excellence.
The powerful system components of the PreXion3D EXPLORER enable an extraordinary combination of the most precise 3D dental imaging, large image detail, low radiation exposure, reliable diagnostics and digital planning for all indications in modern dentistry, including periodontology, endodontics, implantology, orthodontics and maxillofacial surgery, among many others.
Why the PreXion 3D Explorer PRO?
The powerful system components of the PreXion3D EXPLORER enable an extraordinary combination of the most precise 3D dental imaging, large image detail, low radiation exposure, reliable diagnostics and digital planning for all indications in modern dentistry, including periodontology, endodontics, implantology, orthodontics and maxillofacial surgery, among many others. Its patient management system is designed for secure and networked communication of patient data across multiple rooms within a practice and can be integrated into the existing infrastructure with ease.
Key Features:
✓ Innovative built-in ceph arm design freeing over 2 feet of space
✓ 0.3×0.3mm focal spot - the smallest in the industry
✓ Multiple fields of view (FOV) ranging from 5×5 to 15×16.
✓ Low dose, HD and endo CT modes with scan times of 20 seconds or lower
✓ 14-second pano and 16-second ceph scan times
CLINICAL APPLICATIONS
- Implant placement surgery
- Endodontics
- Periodontics
- Oral-maxillofacial surgery
- TMJ
- Pathology
- Impacted and supernumerary teeth
- DICOM export for implant surgical guides & CAD/CAM integration
- Airway analysis
- Accurate 360-degree gantry rotation
- 260 - 1,024 projected views
- Dedicated 2D pan mode option
- Clearest detail with 0.3mm focal spot & 0.08-0.2mm voxel
- Increase case acceptance through enhanced education, and boost your ability to earn greater revenue with fewer patients
HIGHLIGHTS
Does adding a PreXion CBCT to your practice make sense? Find out with the CBCT ROI calculator
FIELDS OF VIEW
The PreXion3D EXPLORER PRO provides an accurate 360° panoramic perspective from 523 to 1,024 projected views. In addition to the 3D analysis function for image detail sizes of 5x5cm, 10x10cm, 15x10cm, and 15x16cm, the device features "True" and "Reconstructed" panorama modes. It impresses with its ease of operation, comprehensive planning programs and imaging software across all dental indication areas.
FOCAL SPOT
The PreXion 3D EXPLORER PRO utilizes the smallest focal spot in the industry at 0.3mm for all FOVs, and voxel sizes ranging from 0.07mm to 0.3mm in order to maintain image quality. The output in ultra-HD with a small voxel size enables a more detailed representation of even the finest structures.
What is a focal spot?
The focal spot, also called focus, is the area on the target of the X-ray tube which is struck by the electron stream and emits X-rays. The larger the focal spot's area, the poorer the detail of the image. The PreXion3D EXPLORER PRO has a 0.3mm focal spot - the smallest in the industry.
What is a voxel?
A combination of the words "volumetric" and "pixel," a voxel is a three-dimensional volume element shaped like an isometric cube. The PreXion3D EXPLORER PRO offers powerful imaging software with a voxel size of only 0.07mm, ensuring a detailed rendering.
SOFTWARE ADVANTAGES
Multi-data - Load multiple patient scans on a single screen. Synchronize pre- and post-operative scans and detect differences, slice-by-slice.
Patient Education and Presentation - Quickly capture 3D animated video clips for patient education, case acceptance and lecture presentations. Increase case acceptance through better patient understanding.
Collaborative Tools - Automatically save 3D image reports to MS Word template and attach to patient's practice management record. Collaborate with referring dentists by burning a patient disc with sample viewer. Capture and email images quickly.
Remote Access - Work on cases from home or a satellite office without long connectivity delays. Lead virtual online treatment planning meetings remotely with PreXion3D.
Thin Client Server - PreXion3D CBCT scanners do not require computer hardware upgrades. It does not slow down network bandwidth like other CBCT scanners.
Implant Library - Use our extensive library or customize your own library.
Save Scenes - Save your case workup as a scene or create multiple saved scenes with a single scan.
3D Templates - Save time with over 20 pre-made 3D volume rendering templates or customize your own.
Slab and Cutting - Slab Feature allows the clinician to see inside structures while rotating the 3D image. Cut away structures to see exactly what is pertinent to your study.
SOFTWARE IMAGES
